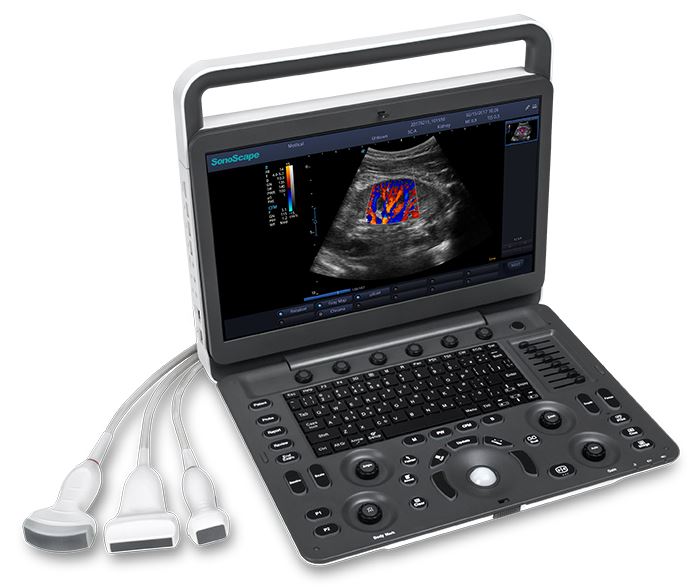

Sonoscape E3

Sonoscape E3 + 2 transductores + el bolso de transporte
Linear Array L741
Convex Array 3C-A
US$x,xxx - Contactenos

Sonoscape E3 + 2 transductores + el bolso de transporte
Linear Array L741
Phased Array 3P-A (cardiaco)
US$x,xxx - Contactenos

Sonoscape E3 + 3 transductores + el bolso de transporte
Linear Array L741
Convex Array 3C-A
Endocavity 6V1
US$xx,xxx - Contactenos

O lo puede configurar a su manera y se lo cotizamos.

CONFIGURACION BASICA

Hardware:
E3 Main Unit
15.6" Medical High Resolution Monitor
Two Transducer Ports
USB 2.0 / Hard Disk 500 G
Standard Battery
Adaptor

Software:
B ( 2B & 4B ) Mode
M Mode
Color Doppler Flow Imaging
Power Doppler Imaging / Directional Power Doppler Imaging
Pulse Wave Doppler Imaging
Continuous Wave Doppler Imaging
Tissue Doppler Imaging
Anatomic M mode
CFM M Mode
B / C Dual Live
Simultaneous Mode (Duplex)
Simultaneous Mode (Triplex)
Tissue Harmonic Imaging
Pure Inversion Harmonic Imaging
TGC (Time gain compensation)
LGC (Lateral Gain Compensation)
Dynamic Multi-beam Technology
2D Steer
Spatial Compound Imaging
Widescan: Linear Extended
Widescan: Convex Extended
μ-Scan (2D Speckle Reduction Technology)
Tissue Specific Imaging
SR Flow
One-Key Optimization (Auto Optimization for 2D / Color / M / PW / CW)
Zoom ( Pan-Zoom / HD-Zoom )
Scr-Zoom ( One-Key Full Screen Display )
Biopsy Guide
Auto Trace
Auto IMT
TEI Index
ECG (Software: Must be Configured with ECG Hardware before Delivery)
Sono-Help (Scanning Tutorial)
Standby Mode
Show Gallery
DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R

Accesorios incluidos:
Ground Lead
AC Power Cord (Specify the Standard: European / American / British / Chinese / South African / Brazilian / Italian)

Configuraciones Opcionales: E3
WIFI Module and ECG (Hardware: Must be Configured before Delivery)
The Third Transducer port (Hardware: Must be Configured before Delivery)
Vis-Needle (Needle Visualization Enhancement)
B Mode Panoramic Imaging
Prospective Saving

Accesorios adicionales
Guias de biopsia
B/W Thermal Printer: SONY UP-X898MD
Color Thermal Printer: SONY UP-D25MD
Color Laser Jet Printer: HP M254nw
B/W Thermal Printer Paper (1 Roll)
Color Thermal Printer Paper (1 Box)
Hard Disk Drive 1 TB
Solid State Drive 250 GB
ECG Lead Wire
Trolley (Not Support Large Capacity Battery at the Same Time)
Large Capacity Battery (Not Support Trolley at the Same Time)
Backpack (With pull rod)
2 Keys Footswitch (USB Interface)
2 Keys Footswitch (Round Interface )
Keyboard Cover
External DVD / VCD
Barcode Scanner
Bluetooth Controller

Transducers Disponibles:
Linear Array L741
Linear Array 9L-A
Convex Array 3C-A
Convex Array C322
Micro-convex Array C613
Phased Array 3P-A
Phased Array 7P-B
Endocavity 6V1
Endocavity EC9-5
Linear Array 10I2
Convex Array 6CT-A
CWD 2.0

Garantias:
24 Meses para la unidad principal y los trasnductores 2D “normales”
12 Meses para los trasnscutores “Especiales” (TEE, Laparoscopic, Volumetrico etc.)
6 Meses para la bateria
